Monitoring your IBM Cloud vSphere servers

The IBM Cloud for VMware Solutions architecture specifies that vSphere (ESXi) servers should be attached to the public network, but should be configured not to enable their own public IP address. This ensures that workloads running on the servers can access the public network as necessary (e.g., using an NSX Edge Services Gateway), but that the hosts themselves cannot be reached over the internet.

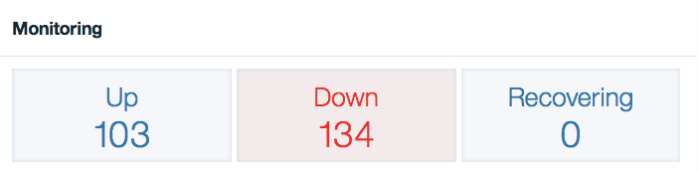

When IBM Cloud (a.k.a. SoftLayer) provisions a bare metal server, the default monitoring configuration for that server is to ping its public IP address. This means that by default all of your ESXi hosts are reported by the IBM Cloud infrastructure portal to be down:

servers-down

You can correct this by re–configuring the monitor for each server to test the private IP address rather than the public IP address. Since you cannot change the IP address of a monitor, you will have to remove the existing monitor and create a new monitor for the private IP address.

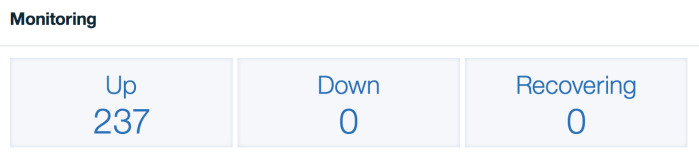

If you have many bare metal servers in this situation, you’ll want to automate the re–configuration. To help with this, I wrote a Python script to reconfigure your bare metal server monitors. You’ll have to fill in your SoftLayer username and API key, and the script will reconfigure the monitors for all servers that are (1) marked down, and (2) have a monitor configured for their public IP but not their private IP. The new monitor for the private IP will retain the same attributes as the existing monitor for the private IP. Voila:

sl-monitor-fixed
